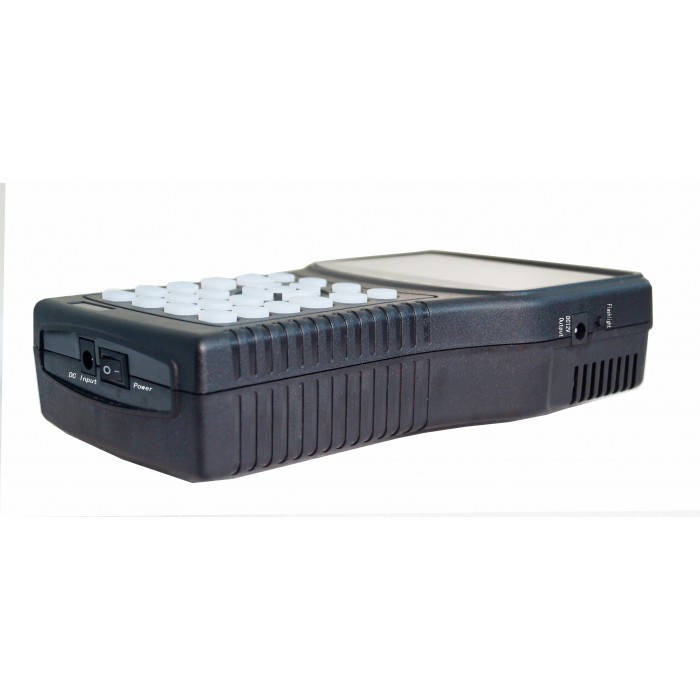

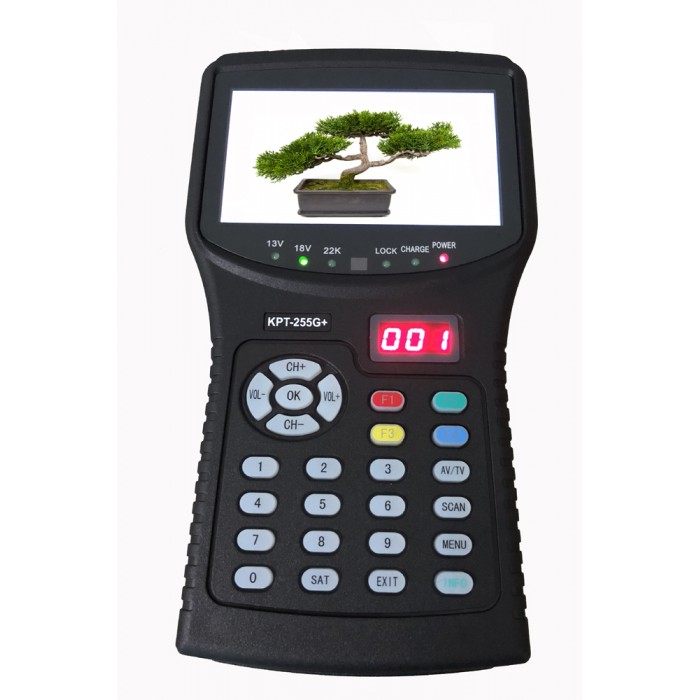

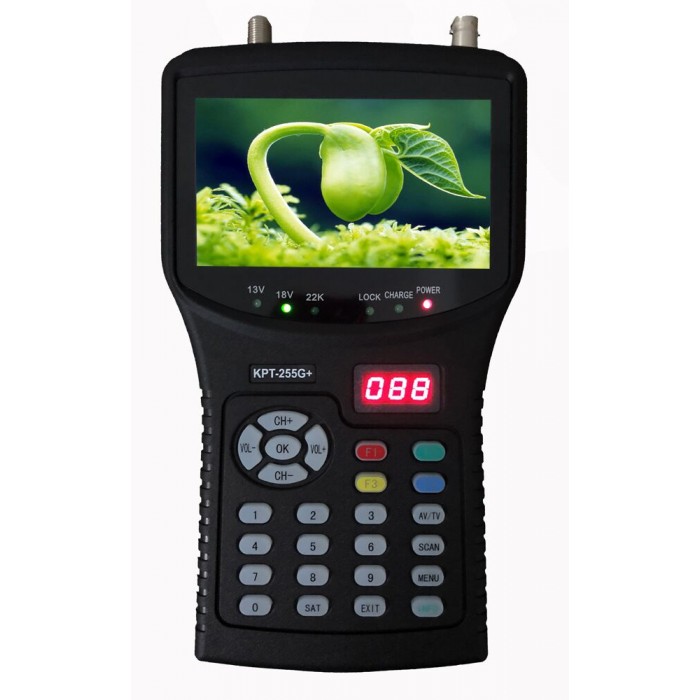

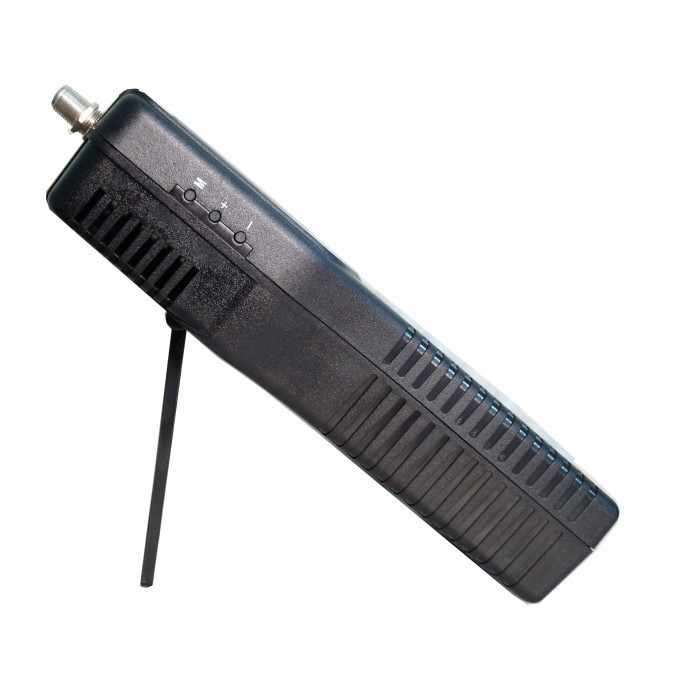

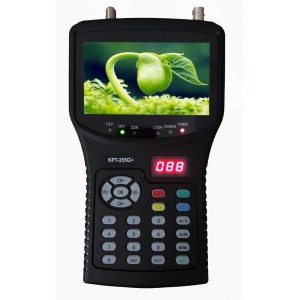

KPT-255G+ (plus)AHD HD CCTV Camera

 KPT-255G+     (Satellite Finder For HD Signal + AHD CCTV Monitor) (With AHD Camera)

*4.3 Inch High definition TFT LCD Screen which Can Play Channels(DVB-S)

*Live FTA Digital Picture and Sound,

*AV Output and AV Input function.

*Shows strength and quality readings,

*Sound and Light Alarm When Lock Signal.(DVB-S/S2 MPEG-4 ABS-S)

More detailsInquiry


Specification

LCD Display

4.3”TFT LCD

Display size:97*55mm(16:9display)

Dots pixels:480*272(391680Pixes)

Satellite signal

video decoding

DVB-S

signal test

DVB-S/S2,MPEG-4,ABS-S,signal alarm & signal test.

Menu language

Chinese/English /French /Arabic/Turkey/Russian

LNB/Tuner Input

connector

F type male puly: 75Ώ (F)

Frequency range

950MHz-2150MHz

Signal level

-65dBm~-25dBm

Symbol rate

13/18V.max400mA

LNB switch control

22KHz

DiSEqC

1.0 1.2edition

Threshold

4.5dB;

Demodulator

Front end

QPSK(SCPC and MCPC compatible)

Symbol rate

2Mbps-45Mbps

System Resource

processor

32bit processor(200MHz)

SDRAM

16Mbyte

FLASH

8Myte

EEPROM

8Kbyte

Video Decoder

Video

MPEG-2 Main Level

Date Rate

Up to 15Mbps

Resolution

720*576,720*480

Video format

PAL/NTSC/SECAM

Audio

Voice patterns

Single sound channel

Sampling rates

32.44.1&48KHz

Panel Connectors

Connector

RS232

Power Supply

Lithium Battery

11.1V/2200mAh

Charger

In  AC100-220V Charge 13.5V/1.5A

Out   DC12V/1.5A

Physical Specification

Size

212*123*48mm

Net Weight

540g (including battery pack)

Function

  4.3inch handheld multifunctional monitor&satellite finder is a product for the installation of satellite TV test tools.Set the satellite TV signal(DVB-S/S2 MPEG-4 ABS-S) and image shows(DVB-S) test, radio, television, monitoring function.Using TFT LCD display image,LED backlighting with low power consumption.Built-in large capacity and high-performance lithium batteries for the integration of high-tech electronic products.

 Low power consumption LED / high-resolution digital display TFT LCD .built-in 2200mAh Li-lon battery, do not need an external power supply, working time is about 3-4 hours, AV output and input function. with DC12V output(use of camera).Unique starsearch guidance function and satellite finder management, Built-in protecting circuits for high-frequency tuner, external short circuit alarm.13V18V/22K/signal lock indicator located in machine panel,it can be displayed at the same time .Due to the use of handheld structure, this machine is small in size and light in weight. Equipped with installation tool backpack, it is more convenient to carry, it is a professional equipment for satellite TV receiving system engineering, control engineering and technicians

Built-in satellite signal warning ,INFO article shows of singnal shape,with enlarge images,with DC12V output.

Easy Satellite Manager (EDIT, delete and SCAN),Edit TP, Frequency, LNB switch, Symbol Rate etc

Accessories









DC13.5V 1.5A adapter

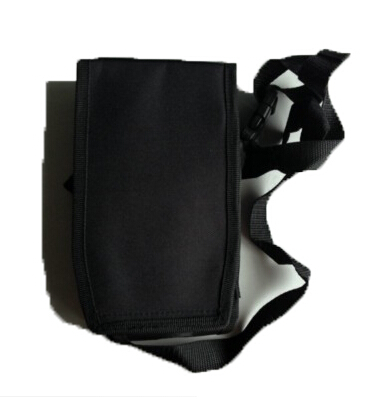

Bag

F fast line

Car Power









AV Line

DC line

Remote(optional)

BNC to RCA (optional)
