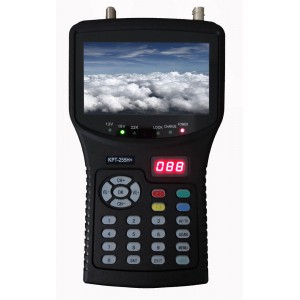

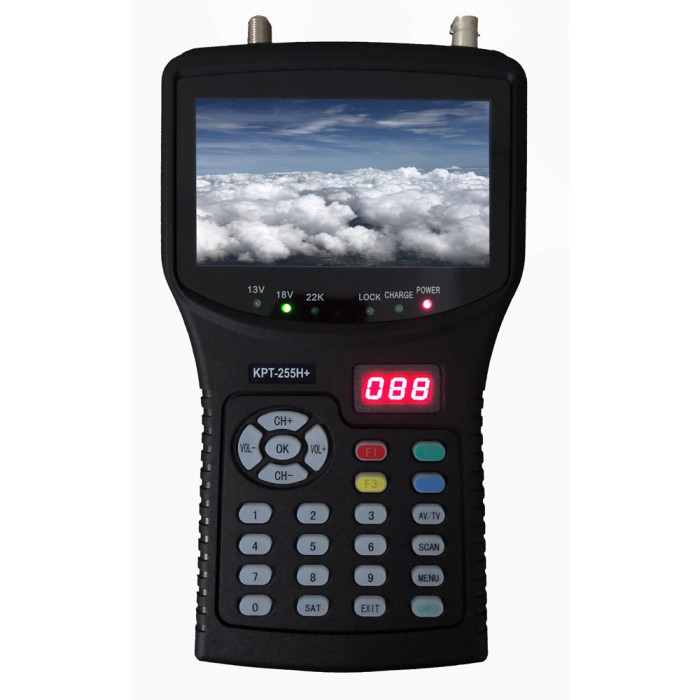

KPT255H+ (plus) AHD HD CCTV Camera

 Newest HD Support DVB-S/S2 MPEG-4 standard and free channel analysis, it also can be easily find DVB-S and DVB-S2 signal source play, and support USB. Multi-functional design with search satellite, satellite TV display, satellite TV convert HD input, USB pictures, Music, Movie player, Record, camera monitoring functions etc.

More detailsInquiry


Parameter

Model

KPT-255H+

AHD(AHD/CVI/TVI)

Support AHD display

LCD Display

4.3”TFT LCD  Display size:97*55mm(16:9 display)

Dots pixels:480*272(391680Pixes)

Satellite signal

video decoding

DVB-S/S2,MPEG-2/4 display

signal test

DVB-S/S2,MPEG-2/4,signal alarm & signal test.

Menu language

English,French,Deutsch,Italiano;Spanish;Portuguese;Russian;Turkish;Polish; Arabic; Persian; Thai.

LNB/Tuner Input

connector

F type male puly : 75Ώ (F)

Frequency range

950MHz-2150MHz(DVB-S/S2)

Signal level

-80~-20dBm

Symbol rate

13/18V.max400mA(DVB-S/S2)

LNB switch control

22KHz(turn on/off/auto)

DiSEqC

1.0, 1.1, 1.2, USALS

Satellite Management

Edit, Add, Delete

Minimum electric level

About 35dBuV (noise)

Maximum electric level

About 90dBuV

Demodulator

Front end

QPSK(SCPC and MCPC compatible)

Symbol rate

2Mbps-45Mbps

Guard interval modes

1/32,1/16,1/8 Active symbol duration

Carriers/Constellation

All modes supported including non hierarchical

Demodulation

QPSK/8PSK/16PSK

System Resource

SDRAM

1G DDR2 SDRAM

FLASH

32MB NOR FLASH

Video Decoder

HDMI Output

480i /480P/576i / 576P / 720P50 /720P60 /1080i25 /1080i30 /1080P50 /1080P60 /1080P25 /1080P30 /1080P24 HD signal output.

Video format

PAL/NTSC/SECAM

Video decoding

MPEG-2 SD/HD(MP@ML and MP@HL), MPEG-4 H 2.64/AVC SD/HD DivX 3.X~6X

Aspect ratio

4:3,16:9

Audio

Audio decoding

MPEG-1 and MPEG-2 layer I&II, Dolby Digital Audio,E-AC3,WMA and HE-AAC Digital Audio

Sample rate

32kHz,22.1kHz,44.1KHz,48kHz

USB

Connector

USB upgrade, media player( PVR, Video, Music, Image)

Power Supply

Lithium Battery

11.1V/2600mAh

Charger

In  AC100-220V Charge 13.5V/1.5A

Out   DC12V / 1.A

Physical Specification

Size

212*123*48mm

Net Weight

540g (including battery pack)

  1.Support DVB-S standard. Fully display DVB-S, DVB-S2, MPEG-2, MPEG-4(H.2.64/AVC) digital satellite signals; High quality video, audio display with HDMI output.

  2.Support AHD input ,AHD/CVI/TVI video display,coaxial high-definition simulation, according to the video products own vehicle with DC12V power supply only output to the camera, engineering treasure is the preferred product.(optional:only KPT-255H+ MODEL)

  3.Support AV input: analog video and audio input display as DVD and other multimedia player

Satellite finder Function

   4.3inch handheld multifunctional monitor& satellite finder is a product for the installation of satellite TV test tools. Set the satellite TV signal and image shows test, radio, television, monitoring function. With auto scan/blind scan/TP scan .Using TFT LCD display image, LED backlighting with low power consumption. And build-in large capacity with high-performance lithium battery for the integration of high-tech electronic products.

   Low power consumption LED / high-resolution digital display TFT LCD. It has built-in 2600mAh Li-lon battery. If don’t need an external power then it can keep on working around 3-4 hours, with DC12V output (use of camera); AV output and input function; Satellite images and signal quality can be displayed through the LCD; Unique star search guidance function; Build-in LNB management circuits for TV tuner, receive satellite signal alarm (search satellite signal quality changeable warn and alarm, support DVB-S/S2&MPEG-4 image & signal for free program and warming). 13V18V/22K signal lock indicator which located at the panel can show in the same time. This finder used the portable structure, with small in size and light in weight. Equipped with installation tool backpack, it is more convenient to carry, so it is the professional equipment for satellite TV receiver system engineering and control engineer technicians.

  Users can add and revise the parameter in the satellite finder directly. Support DISEqC1.0、DISEqC1.1 multi-satellite input(the most can support 16 sate input); With DISEqC1.2, USALS satellite search window; Support auto antenna control; multi-site scan, indicate multi-TP scan/blind scan etc. Lock satellite signal sound alarm function; Operate and lock light indicate. (Operating the menu and locking the satellite signal, there will show the LED indicator).There will also display the LED digital tube with finder screen showing the signal quality in the same time; 13V, 18V voltage output LED indicator; 22K on and off indicator; 22K switch auto cutover; With LNB auto protection when short circuit; Decode the digital video; PCM and RAW (HDMI on). Build-in subheading DVB title, and attached graphic TV receiver functions etc.

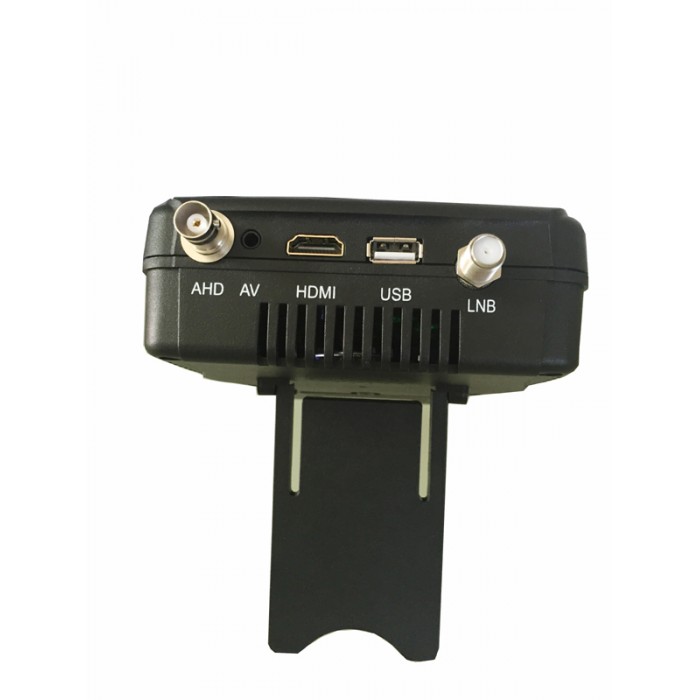

USB port can use in software’s upgrade and media play (such film, image, music and record etc). 3.5 standard audio and video input and output port which is convenient to export to other TV broadcast equipment with enter audio and video signal, HDMI output. When receive the satellite, it also can export the TV signal and HD signal synchronously; Standard accessories including bag, remote control, AV Line, F fast line, DC 13.5V 1.5A adapter, car power and HDMI line are optional; With special LED high brightness flashlight, and there also has LED back light under the keyboard, it is more convenient to operate at night.

Built-in satellite signal warning; Find star signal quality LED displayed, with DC12V output.

Easy Satellite Manager (EDIT, delete and SCAN), Edit TP, Frequency, LNB switch, Symbol Rate etc

Accessories









DC13.5V 1.5A adapter

Bag

F fast line

Car Power











AV Line

DC line

HDMI Line

Remote
