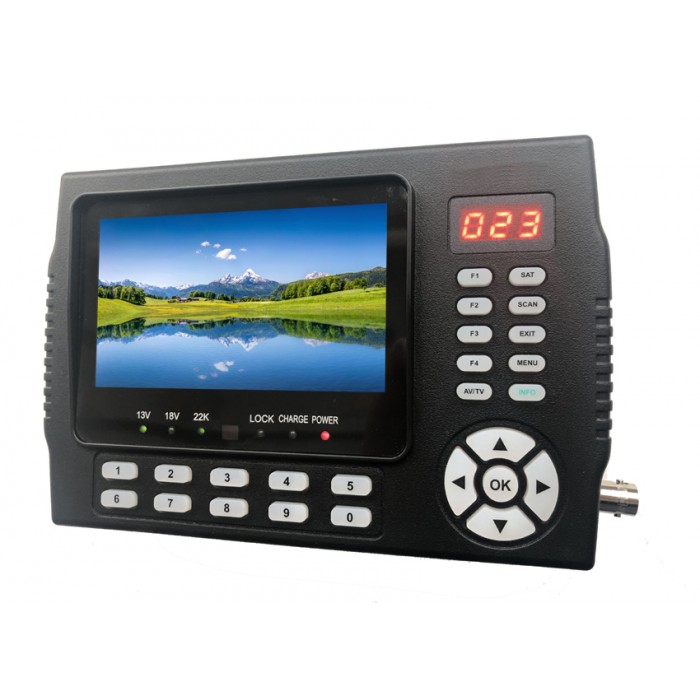

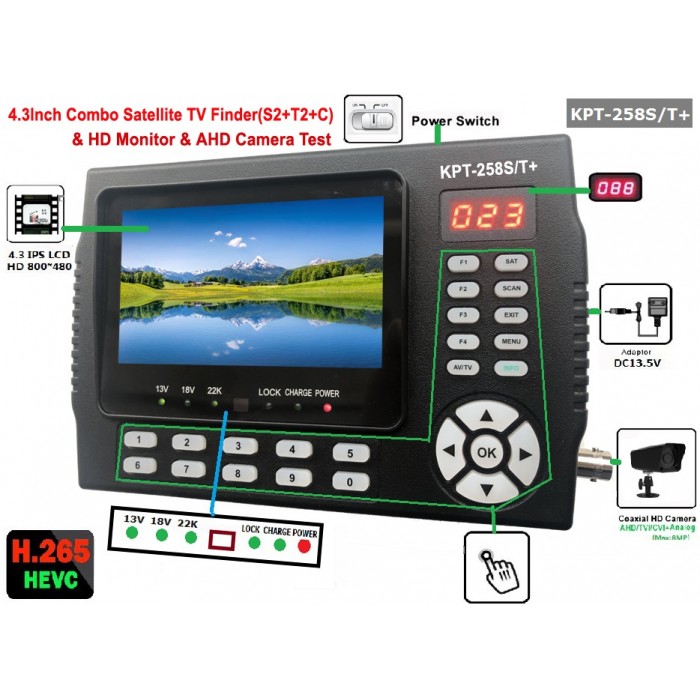

①Combo Satellite TV Finder(DVB-S2/T2/C)

②HD input function.(HD Monitor)

③AHD input function.(HD Coaxial Camera Test)

④AV input function.(Monitor)

1.Combo Satellite finder

DVB-S/S2  < DVB-S/S2 MP4 HEVC(H.265) AVS/AVS+>

¤Frequency range:950MHz-2150MHz

¤LNB power & switch:13V18V/22K / signal lock indicator

¤Input impedance: 75Ώ (F).     LNB short-circuit protection

¤DiSEqC:1.0, 1.1, 1.2, USALS   Build-in signal locked alarm

¤Build-in satellite finder management

Easy Satellite Manager (Edit, Delete and Scan),Edit TP, Frequency, LNB switch, Symbol Rate etc

DVB-T/T2 :  <DVB-T and DVB-T2 standard>

Frequency range: VHF-H 174-230MHz, UHF 470-860MHz

Demodulation:QPSK, 16QAM, 64QAM,256QAM

Bandwidth:6、7、8MHz

DVB-C:  <DVB-C standard>

Frequency range: 115~858MHz ；

Symbol Rate(Kbps)：Modify according to local country information

Demodulation:16QAM, 32QAM, 64QAM,128QAM,256QAM

2.HD Input:  On HD Input state

Support 800*480 to Max 1920*1080 (Max:1080P)

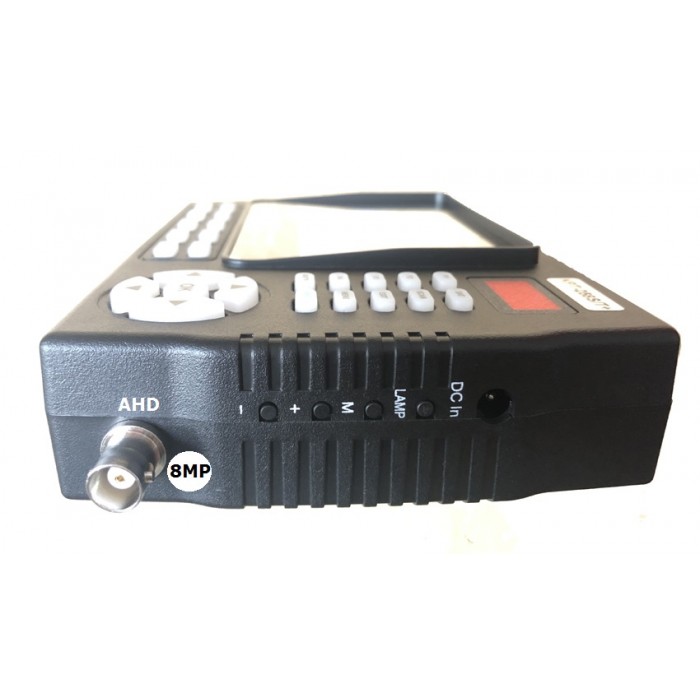

3.AHD Input: Test CCTV Camera <Automatic display of HD AHD/TVI/CVI camera pixel>

1.AHD:Support AHD/TVI/CVI camera 720P 960P 1080P 4K HD video input,display picture (Max: 8MP)

2.Analog CVB-S Video

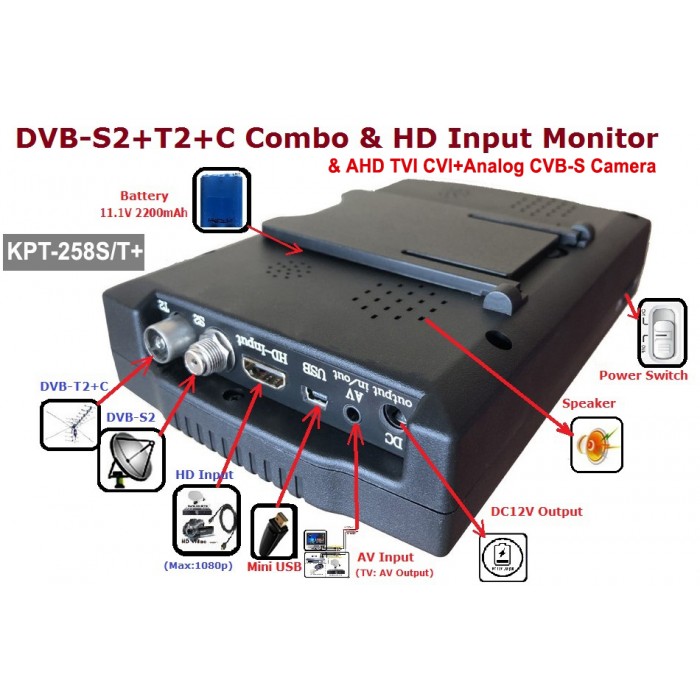

4.AV Input:(on AV state;TV state is AV output)

¤Support Video & Audio & DC12V power test

¤AV Input (Video&Audio Input Monitor)

¤4.3”IPS high-resolution digital display LCD

¤Dots pixels:HD 800*480(800*480Pixes)

¤Color system: PALNTSC

¤Battery indicator light show

¤Lithium battery: DC 11.1V  2200mAh(build-in)

¤Input voltage:DC13.5V  1A

Product Size   180*122*48mm    517g (including battery pack)
