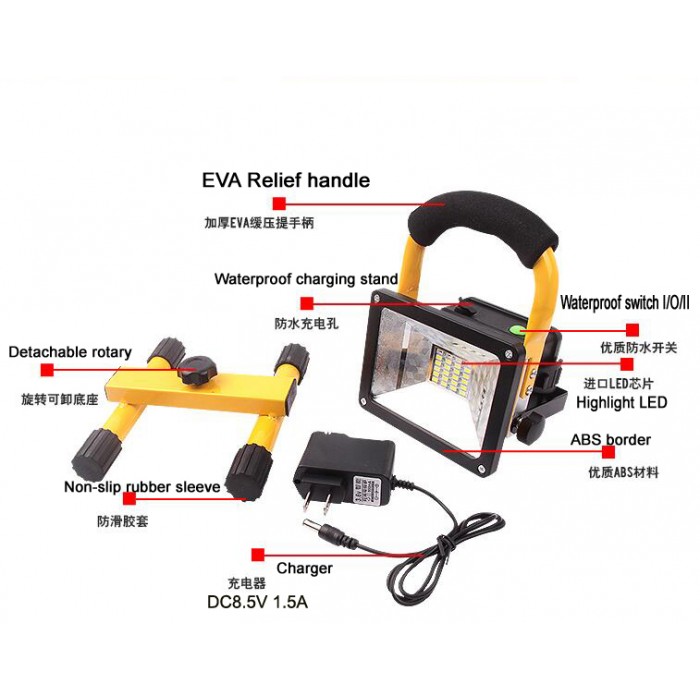

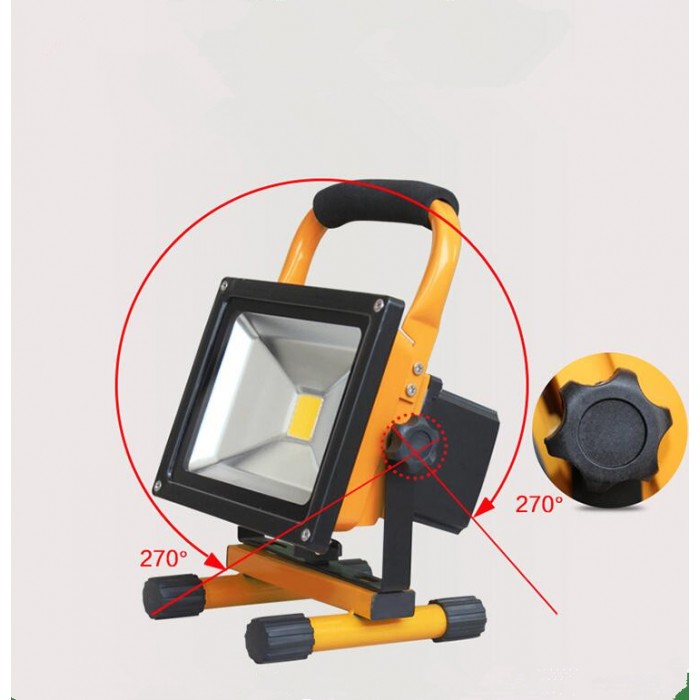

Operating environment: It is difficult to use municipal electricity in construction sites far away from municipal electricity, various large-scale construction operations, maintenance and repair, accident handling and disaster relief work sites need large area, high brightness lighting. The product is suitable for working in rainy days, but can not be immersed in water. 360 Degree Rotary Bracket, 30W/20W Ultra-bright Power, Ultra-long Range Light.
Reminder:
1. Within one meter, please do not directly irradiate people's eyes to avoid causing damage to them.
2. In order to avoid battery damage or unable to charge, please use our company's supporting charger, vehicle power supply for charging.
3. When the electricity is used up (when the electricity is shown to be the lowest), please charge it in time. If it is not used for a long time, please charge the lamp every other month.
4. Internal batteries can not be used for other purposes. Metal contacts with charging holes are not allowed to cause explosion.
5. The portable lamp can not be directly connected to the city electricity (AC220V) to avoid burning out the circuit.
6. The shell and circuit board can not be disassembled by themselves to avoid electrostatic breakdown of electronic devices.
7. Do not store or use the product under high temperature or strong sunshine. Do not throw it into the fire.
8. Keep the surface of the luminous surface clean so as not to affect the lighting effect. If the surface is covered with ash, please wipe it gently with a clean flannel cloth.
9. Charging indicator lights, charger red light marking battery charging, turn to green light marking battery charging full, you can turn on the light to block the light source, right three green indicators are all on one light for low power, two lights for half of the power, three lights for sufficient power.
10. Battery Overcharge Protection, Short Circuit Protection, Low Voltage Protection
11.Waterproof grade IP65, not allowed to use in water, can be placed outdoors in light rain.
Model
|
KPT-PL21 LED
|
Light source power
|
20W 60Lamp beads
|
Working hours
|
First-gear highlight about 10 hours
second gear about 5 hours light
|
Lamp border size
|
180*140mm
|
Overall appearance size
|
190*250*135CM/220*285*185mm
(including stent)
|
Luminous angle
|
100° ~ 120°
|
working temperature
|
-20℃ ~ 40℃
|
Waterproof grade
|
IP65
|
Charging voltage/ time
|
DC12V 1A (3-6H)
|
Battery type
|
Lithium iron phosphate battery(6.4V 5A)
|
Charging protection
|
Constant Current Overdischarge/Overcharge Protection
|
