SL-36LED

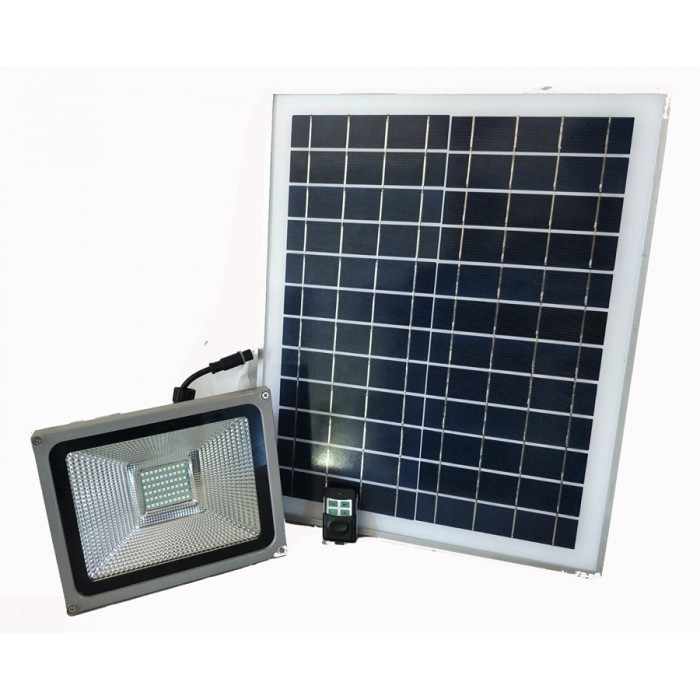

Smart Solar Charge lighting lamp KPT-SL36LED（Backpack style）

Outdoor wall-mounted solar projection lamp;daytime use of solar energy charging,automatic lighting at night can be selected at a fixed time,featured remote control function,ultra-long distance remote control,one-yard remote control,optional daytime lighting timing/night full-light or timing off function.

More detailsInquiry


Smart usage mode:

When the connection line is connected, the red indicator of the solar lamp will light up during the day when it is charged, and the light will start to light at night. The charging lamp is not lighted. After each shutdown, the default mode is to recharge during the day, turn on the light automatically at night, and turn on the light all night.

Switch light key: press  the solar lamp to turn off; delete all functions, press  the solar lamp into intelligent mode; blue light in the lamp board, dark, automatic light (light mode is on all night), daylight, automatic light out into charging state, red light on.

(1) intelligent mode:

According to the customer's needs, the timing function can be turned on by pressing the key once for 4 hours (a green light on the lamp board), pressing  the key once for 8 hours (two green lights on the lamp board); pressing the key once again for canceling the timing, for the night light mode (the green light on the lamp board is not on). The timing function is cyclic operation, 4 hours to 8 hours and overnight.

(2)artificial mode: forced start button.

According to customer's requirements, we can turn on the daytime forced solar lamp to light, press the button to light the forced solar lamp. The lighting time is 4 hours. After 4 hours, the solar lamp will be automatically turned off and the intelligent mode will be restored. Turn the night into a smart lighting mode at night.

Artificial mode is full of special brightness adjustment, you can choose according to your requirements, press once again to reduce brightness, press once again to reduce brightness again; the brightness of the three-stop light is cyclic operation, high-brightness medium-brightness light.



Design sketch

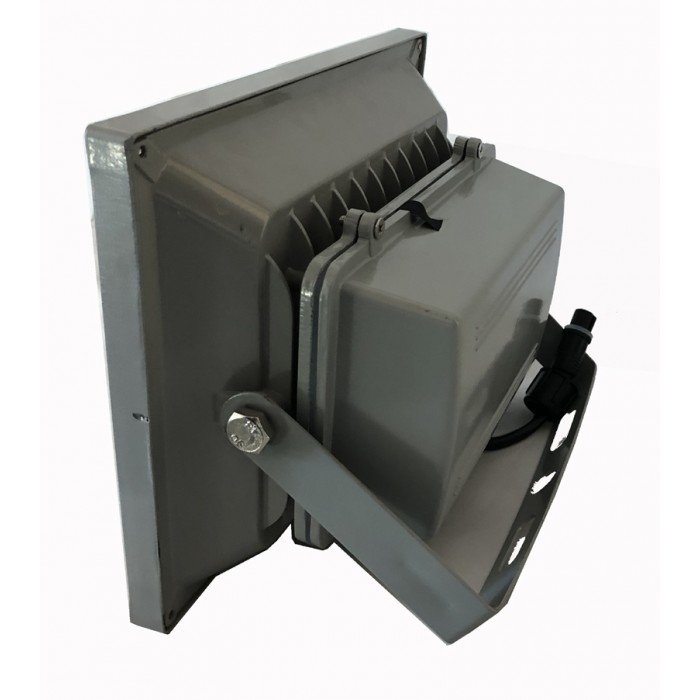

                            Backpack (battery behind the lamp)

Parameters

Number of beads: 60 light white (6000K-6500K)

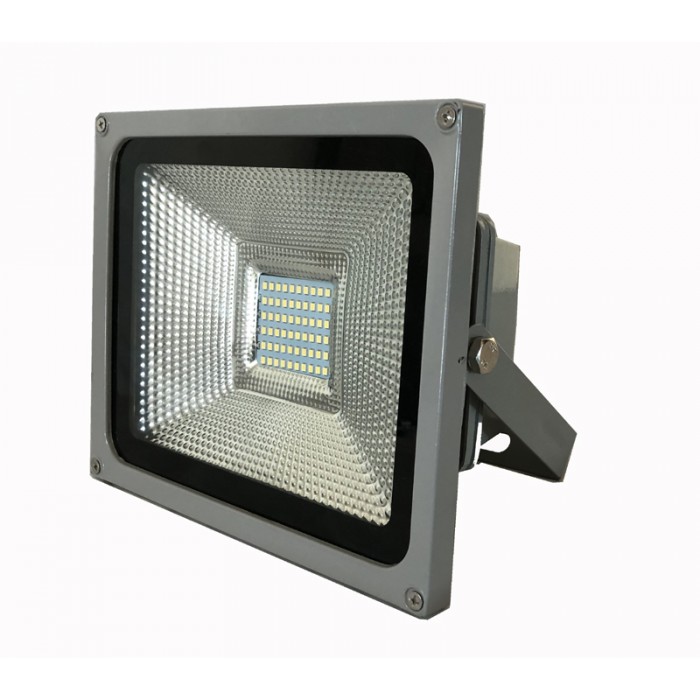

Projection lamp size: 226*184*100mm

 solar panel size: 461*370*18mm (12V input 20W input power)

Battery capacity: 6.4V 8 Ah LiFePO4 battery

Lighting mode: full night light or 4/8 hours or daylight.

Description:

The five core connection is charged during the day and lights are activated at night. After the remote shutdown, the default mode is to recharge during the day, turn on the light automatically at night, and turn on the light all night.

Push the switch key to turn off the solar lamp; delete all functions, then press the switch key to enter the intelligent mode of solar lamp; blue light in the lamp board, dark, automatic light (light mode is open all night), daylight, automatic light off into charging state, red light on.

(1) intelligent mode:

According to the demand, the timing function can be turned on, pressing the timing key once for 4 hours, pressing the timing key once for 8 hours, and pressing the time key once for canceling, which is the mode of lighting all night. The timing function is cyclic operation, 4 hours to 8 hours and overnight.

(2) manual mode: forced lighting during the day (warehouse or other requirements).

Require to turn on the daytime forced solar light, press the force button for the solar light forced light, lighting time is 4 hours, after 4 hours, the solar light automatically off, restore the intelligent mode. Turn the night into a smart lighting mode at night.

Artificial mode is full of special brightness adjustment, you can choose according to your requirements, press once again to reduce brightness, press once again to reduce brightness again; the brightness of the three-stop light is cyclic operation, high-brightness medium-brightness light. Working mode: automatic charging during the day and automatic lighting at night.

Solar lamp built-in circuit: contains battery power low voltage protection and overcharge protection; Solar lamp waterproof grade: IP65

Enclosure:

Solar energy lamp：1pc       Solar panels:1pc      spare parts:1pc    remote:1pc (optional 2pc)
