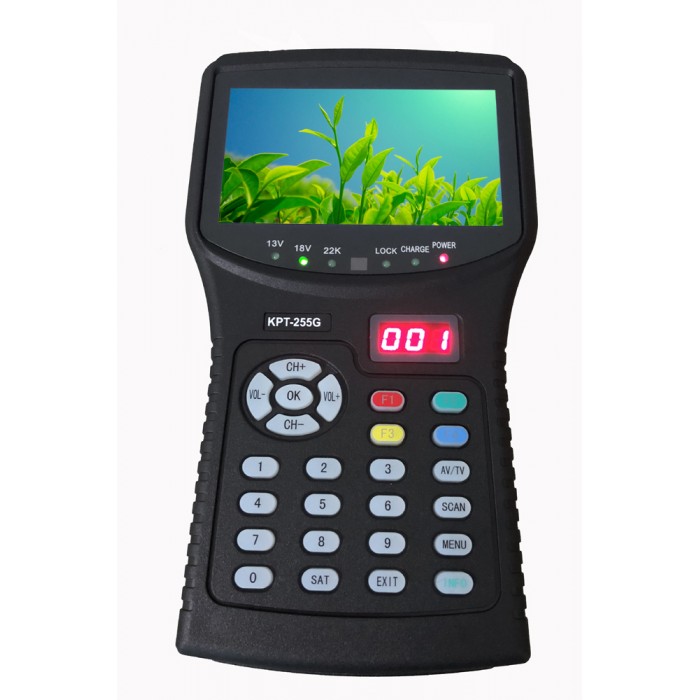

KPT-255G

Support DVB-S/S2 MPEG-4 standard and free channel analysis, it also can be easily find DVB-S and DVB-S2 signal source play, and support USB. Multi-functional design with search satellite, satellite TV display, satellite TV convert HD input, USB pictures, Music, Movie player, Record, camera monitoring functions etc.

More detailsInquiry


Model

KPT-255G

Test Video(AV Input)

Anlogy Video

LCD Display

4.3”TFT LCD  Display size:97*55mm(16:9 display)

Dots pixels:480*272(391680Pixes)

Satellite signal

video decoding

DVB-S/S2,MPEG-2/4 display

signal test

DVB-S/S2,MPEG-2/4,signal alarm & signal test.

Menu language

English,French,Russian;Arabic;Portuguese;;Turkish;Deutsch,Italiano;Spanish;Polish;Persian;Indonesia

LNB/Tuner Input

connector

F type male puly : 75Ώ (F)

Frequency range

950MHz-2150MHz(DVB-S/S2)

Signal level

-80~-20dBm

Symbol rate

13/18V.max400mA(DVB-S/S2)

LNB switch control

22KHz(turn on/off/auto)

DiSEqC

1.0, 1.1, 1.2, USALS

Satellite Management

Edit, Add, Delete

Minimum electric level

About 35dBuV (noise)

Maximum electric level

About 90dBuV

Demodulator

Front end

QPSK(SCPC and MCPC compatible)

Symbol rate

2Mbps-45Mbps

Guard interval modes

1/32,1/16,1/8 Active symbol duration

Carriers/Constellation

All modes supported including non hierarchical

Demodulation

QPSK/8PSK/16PSK

Audio

Audio decoding

MPEG-1 and MPEG-2 layer I&II, Dolby Digital Audio,E-AC3,WMA and HE-AAC Digital Audio

Video Decoder

Video format

PAL/NTSC/SECAM

Video decoding

MPEG-2

Aspect ratio

4:3,16:9

Input /Output Connector

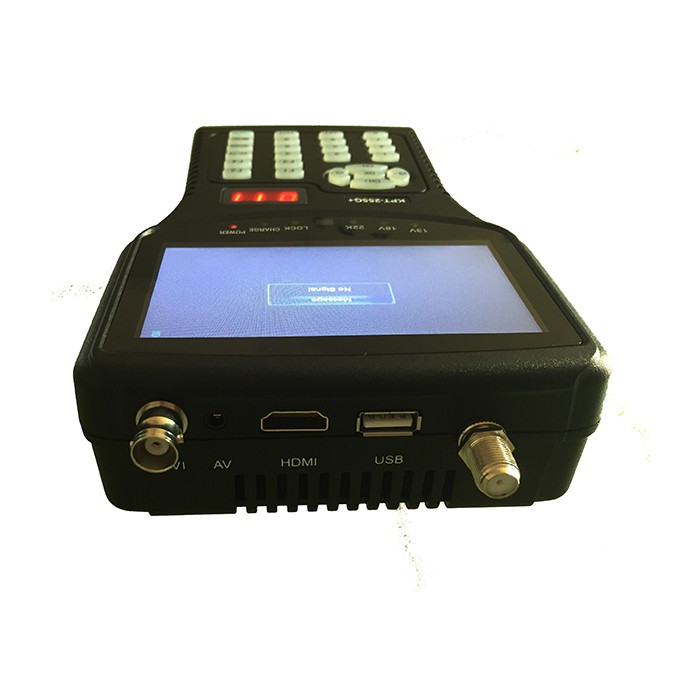

HDMI Output

480i /480P/576i / 576P / 720P /1080i /1080P HD signal output.H.264, MPEG2 and MPEG1

AV(Video&Audio)

AV state: 3.5 port audio&video input

TV state: 3.5 port audio&video output

Optional 1: AHD Input

Support AHD CVI camera 720P HD video input,display picture

Optional 2: TVI Input

Support TVI AHD CVI camera 720P HD video input,display picture

USB Input

USB upgrade,

USB media player( PVR, Video, Music, Image)

Power Supply

Lithium Battery

11.1V/2200mAh

Charger

In  AC100-220V Charge 13.5V/1.5A

Out   DC12V / 1A

Physical Specification

Size

212*123*48mm

Net Weight

540g (including battery pack)



 1.Support DVB-S standard. Fully display DVB-S, DVB-S2, MPEG-2, MPEG-4(H.2.64/AVC) digital satellite signals; High quality video, audio display with HDMI output.

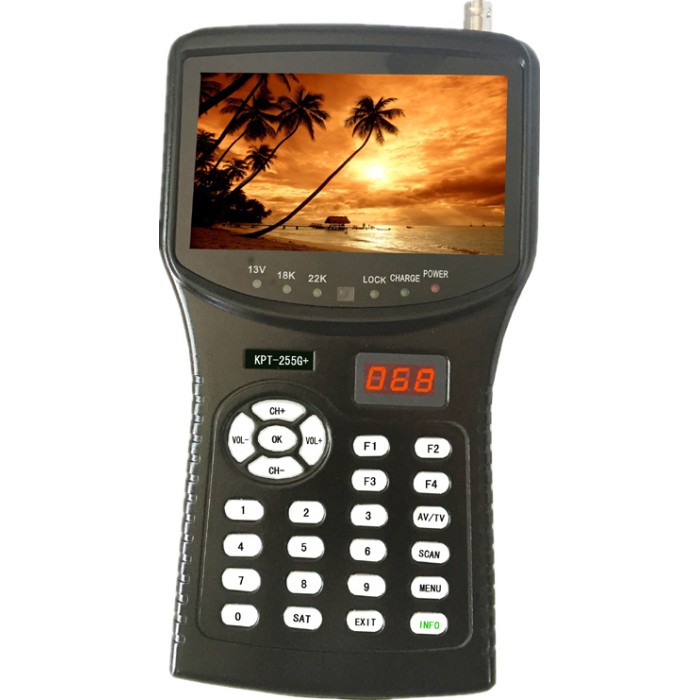

  2.Support AHD input ,AHD/CVI/TVI video display,coaxial high-definition simulation, according to the video products own vehicle with DC12V power supply only output to the camera, engineering treasure is the preferred product.(optional:only KPT-255G+ MODEL)

  3.Support AV input: analog video and audio input display as DVD and other multimedia player

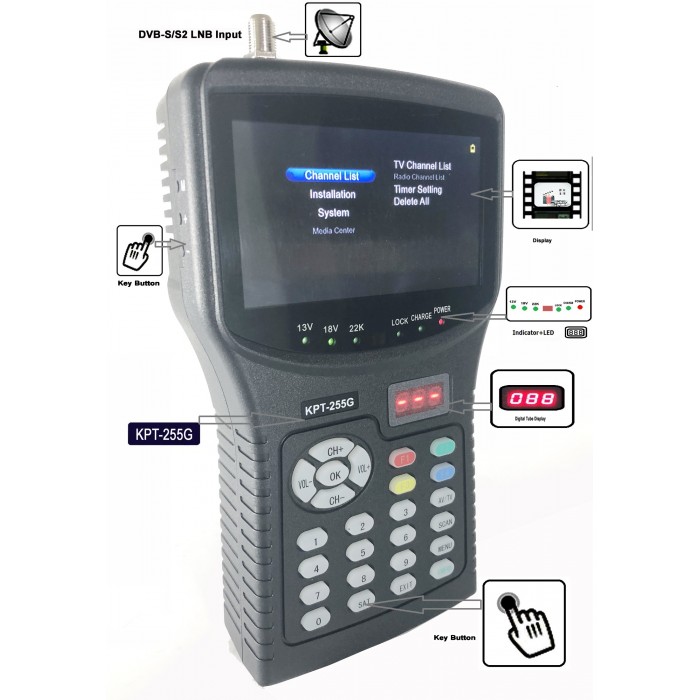

Satellite finder Function

 4.3inch handheld multifunctional monitor&satellite finder is a product for the installation of satellite TV test tools.Set the satellite TV(DVB-S/S2 MPEG-4) and signal & image shows test, radio, television, monitoring function.Using TFT LCD display image,LED backlighting with low power consumption.Built-in large capacity and high-performance lithium batteries for the integration of high-tech electronic products.

 Low power consumption LED / high-resolution digital display TFT LCD.built-in 2200mAh Li-lon battery, do not need an external power supply, working time is about 3 hours, AV output and input function. with DC12V output(use of camera).Unique starsearch guidance function and satellite finder management, Built-in protecting circuits for high-frequency tuner, external short circuit alarm.13V18V/22K/signal lock indicator located in machine panel,it can be displayed at the same time .USB port can use in software’s upgrade and media play (such film, image, music and record etc).Due to the use of handheld structure, this machine is small in size and light in weight. Equipped with installation tool backpack, it is more convenient to carry, it is a professional equipment for satellite TV receiving system engineering, control engineering and technicians

Built-in satellite signal warning ; Find star signal quality LED displayed,INFO article shows of singnal shape,with DC12V output.

Easy Satellite Manager (EDIT, delete and SCAN),Edit TP, Frequency, LNB switch, Symbol Rate etc

Accessories









DC13.5V 1.5A adapter

Bag

F fast line

Car Power











AV Line

DC line
