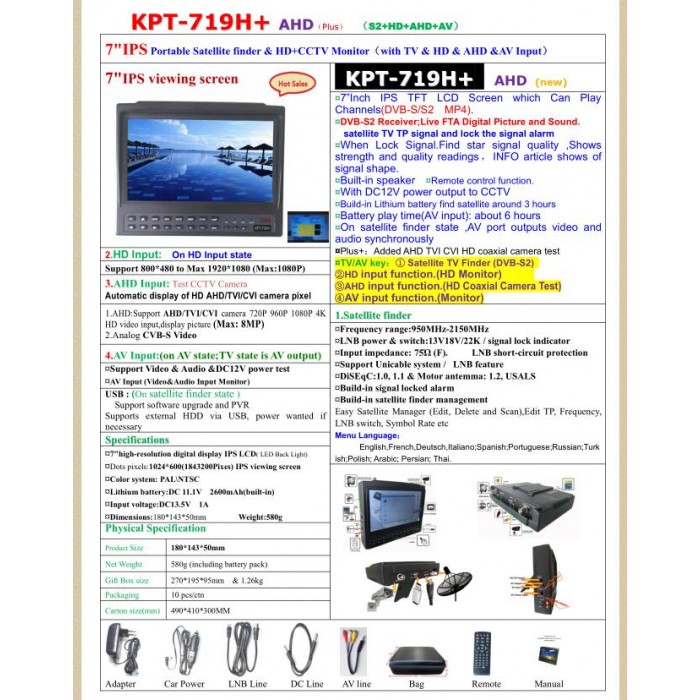

① Satellite TV Finder (DVB-S2)

②HD input function.(HD Monitor)

③AHD input function.(HD Coaxial Camera Test)

④AV input function.(Monitor)

1.Satellite finder

¤Frequency range:950MHz-2150MHz

¤LNB power & switch:13V18V/22K / signal lock indicator

¤Input impedance: 75Ώ (F).     LNB short-circuit protection

¤Support Unicable system /  LNB feature

¤DiSEqC:1.0, 1.1 & Motor antenna: 1.2, USALS

¤Build-in signal locked alarm

¤Build-in satellite finder management

Easy Satellite Manager (Edit, Delete and Scan),Edit TP, Frequency, LNB switch, Symbol Rate etc

2.HD Input:  On HD Input state

Support 800*480 to Max 1920*1080 (Max:1080P)

3.AHD Input: Test CCTV Camera

Automatic display of HD AHD/TVI/CVI camera pixel

1.AHD:Support AHD/TVI/CVI camera 720P 960P 1080P 4K HD video input,display picture (Max: 8MP)

2.Analog CVB-S Video

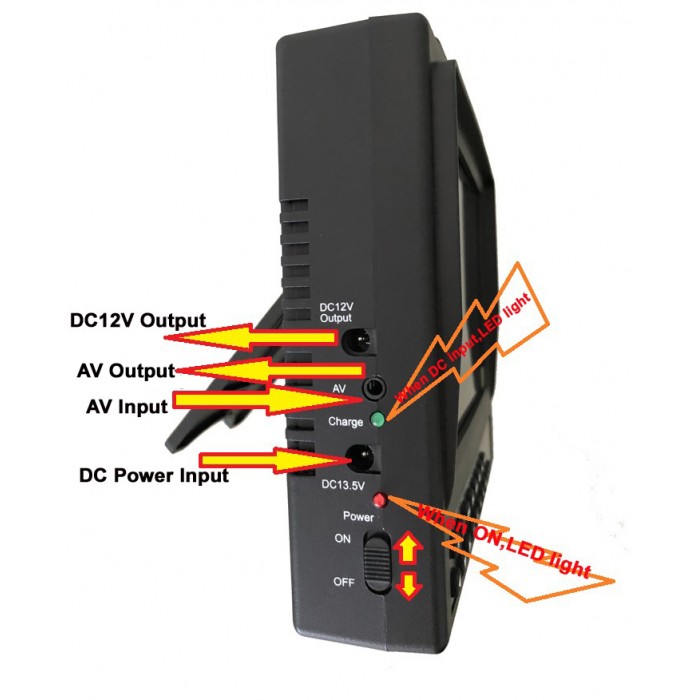

4.AV Input:(on AV state;TV state is AV output)

¤Support Video & Audio &DC12V power test

¤AV Input (Video&Audio Input Monitor)

¤7"IPS high-resolution digital display IPS LCD( LED Back Light)

¤Dots pixels:1024*600(1843200Pixes) IPS viewing screen

¤Color system: PALNTSC

¤Battery indicator light show

¤Lithium battery:DC 11.1V  2600mAh(built-in)

¤Input voltage:DC13.5V  0.8A
