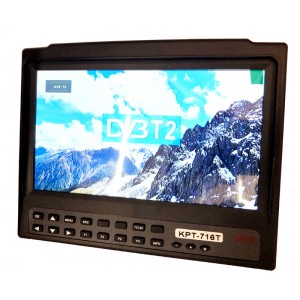

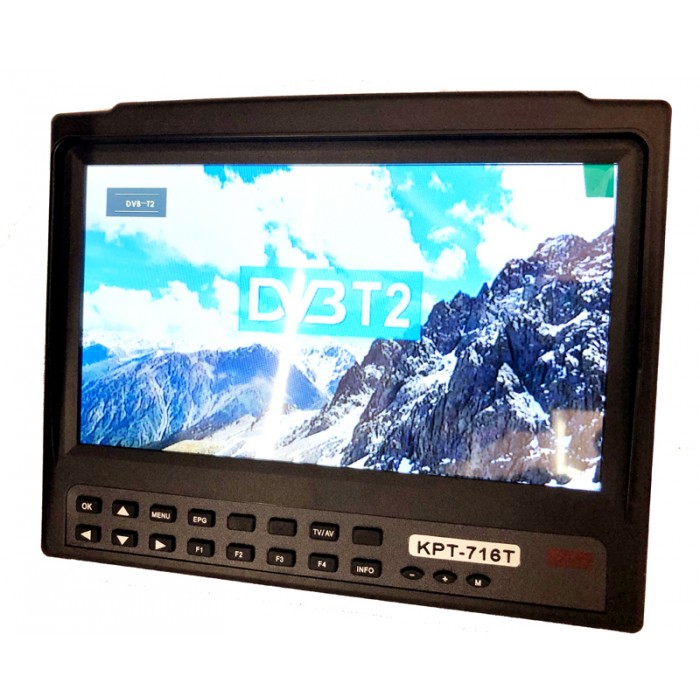

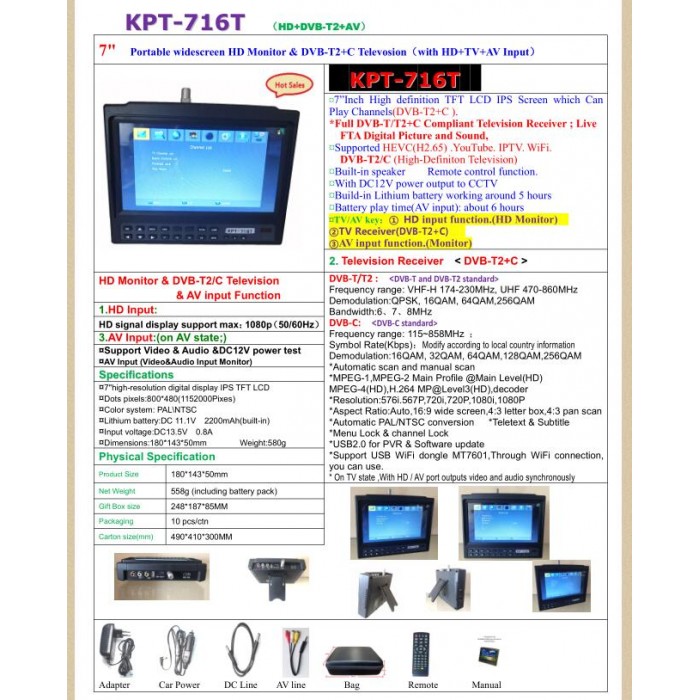

HD Monitor & DVB-T2/C Television  & AV input Function

① HD input function.(HD Monitor)

②TV Receiver(DVB-T2+C)

③AV input function.(Monitor)

1.HD Input:

Support 800*480 to Max 1920*1080 (Max:1080P)

2. Television Receiver  < DVB-T2+C >

DVB-T/T2 :  <DVB-T and DVB-T2 standard>

Frequency range: VHF-H 174-230MHz, UHF 470-860MHz

Demodulation:QPSK, 16QAM, 64QAM,256QAM

Bandwidth:6、7、8MHz

DVB-C:  <DVB-C standard>

Frequency range: 115~858MHz ；

Symbol Rate(Kbps)：Modify according to local country information

Demodulation:16QAM, 32QAM, 64QAM,128QAM,256QAM

*Automatic scan and manual scan

*MPEG-1,MPEG-2 Main Profile @Main Level(HD)

MPEG-4(HD),H.264 MP@Level3(HD),decoder

*Resolution:576i.567P,720i,720P,1080i,1080P

*Aspect Ratio:Auto,16:9 wide screen,4:3 letter box,4:3 pan scan

*Automatic PAL/NTSC conversion   *Teletext & Subtitle

*Menu Lock & channel Lock

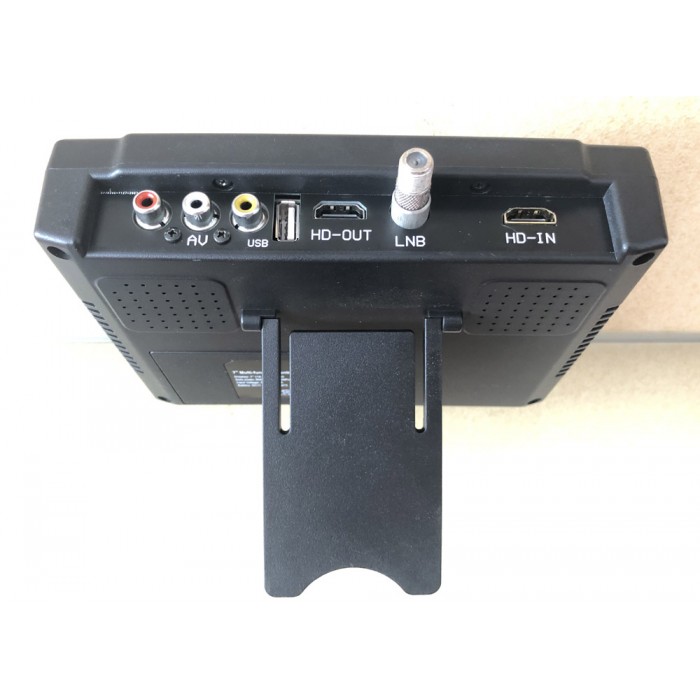

*USB2.0 for PVR & Software update

*Support USB WiFi dongle MT7601,Through WiFi connection, you can use.

* On TV state ,With HD / AV port outputs video and audio synchronously

3.AV Input:(on AV state;)

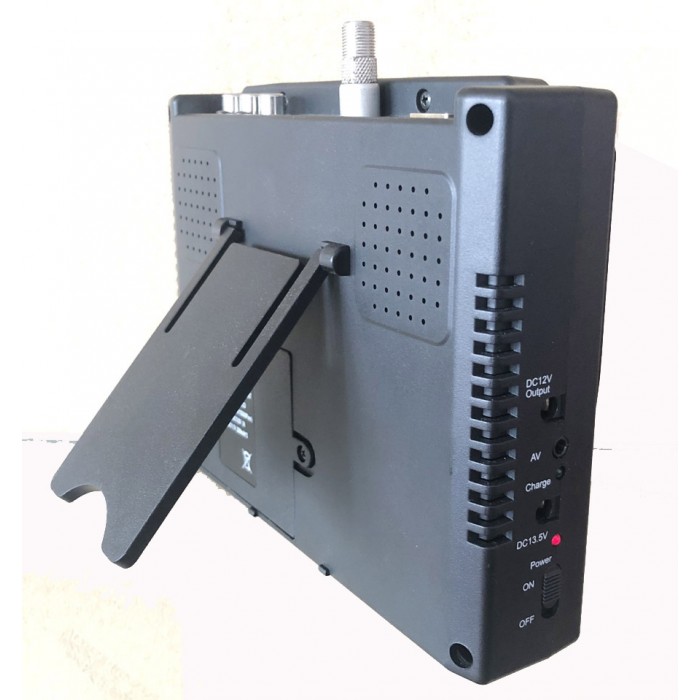

¤Support Video & Audio &DC12V power test

¤AV Input (Video&Audio Input Monitor)

¤7"high-resolution digital display IPS TFT LCD

¤Dots pixels:800*480(1152000Pixes)

¤Color system: PALNTSC

¤Battery indicator light show

¤Lithium battery:DC 11.1V  2200mAh(built-in)

¤Input voltage:DC13.5V  0.8A
